USRP_server_diagnostic.cpp File Reference

#include "USRP_server_diagnostic.hpp"

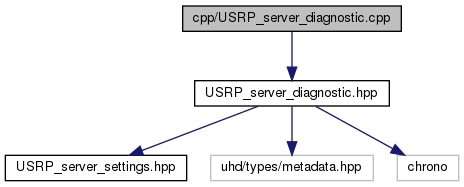

Include dependency graph for USRP_server_diagnostic.cpp:

Go to the source code of this file.

Functions
void	set_this_thread_name (std::string thread_name)
	Set the htread name reported in the logging. More...
void	interptet_rx_error (uhd::rx_metadata_t::error_code_t error)
int	get_rx_errors (uhd::rx_metadata_t *metadata, bool verbose)
int	get_tx_error (uhd::async_metadata_t *async_md, bool verbose)
	Interpret tx errors from the async usrp comunication. More...
void	print_params (usrp_param my_parameter)
	Print parameters on the terminal in a readable way. More...
template<typename CharT , typename TraitsT >
std::basic_ostream< CharT, TraitsT > &	operator<< (std::basic_ostream< CharT, TraitsT > &strm, severity_level lvl)
void	init_logger ()
	initialize the logger for the server. Creates or access the folder logs. each time the server starts, creates an enumerated log file. More...

Variables
boost::shared_ptr< file_sink >	pLogSink
	Shared pointer to the logfile writer object. More...

Function Documentation

set_this_thread_name()

void set_this_thread_name

(

std::string

thread_name

)

Set the htread name reported in the logging.

Definition at line 4 of file USRP_server_diagnostic.cpp.

Referenced by hardware_manager::clean_rx_queue(), Sync_server::clear_stream_queue(), preallocator< float2 >::close(), main(), Sync_server::reconnect(), Async_server::recv_async(), and TXRX::stop().

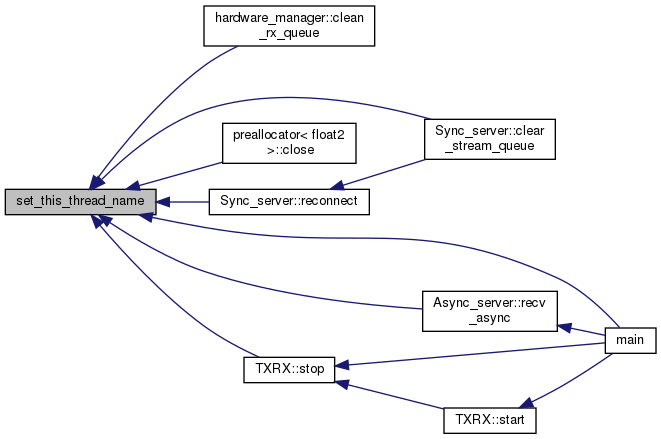

Here is the caller graph for this function:

interptet_rx_error()

void interptet_rx_error

(

uhd::rx_metadata_t::error_code_t

error

)

Definition at line 14 of file USRP_server_diagnostic.cpp.

References print_warning().

Referenced by get_rx_errors().

Here is the call graph for this function:

Here is the caller graph for this function:

get_rx_errors()

int get_rx_errors	(	uhd::rx_metadata_t *	metadata,
		bool	verbose
	)

Definition at line 44 of file USRP_server_diagnostic.cpp.

References interptet_rx_error(), print_error(), and print_warning().

Referenced by hardware_manager::clean_rx_queue().

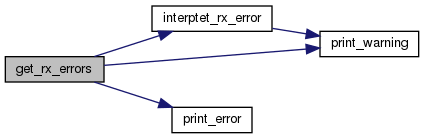

Here is the call graph for this function:

Here is the caller graph for this function:

get_tx_error()

int get_tx_error	(	uhd::async_metadata_t *	async_md,
		bool	verbose
	)

Interpret tx errors from the async usrp comunication.

Definition at line 63 of file USRP_server_diagnostic.cpp.

References print_error(), and print_warning().

Referenced by hardware_manager::clean_rx_queue().

Here is the call graph for this function:

Here is the caller graph for this function:

print_params()

void print_params

(

usrp_param

my_parameter

)

Print parameters on the terminal in a readable way.

Definition at line 108 of file USRP_server_diagnostic.cpp.

References ant_mode_to_str(), print_error(), and w_type_to_str().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

operator<<()

template<typename CharT , typename TraitsT >

std::basic_ostream< CharT, TraitsT >& operator<< ( std::basic_ostream< CharT, TraitsT > &  strm, severity_level  lvl  )

inline

Definition at line 398 of file USRP_server_diagnostic.cpp.

init_logger()

void init_logger

(

)

initialize the logger for the server. Creates or access the folder logs. each time the server starts, creates an enumerated log file.

Definition at line 421 of file USRP_server_diagnostic.cpp.

References pLogSink.

Referenced by main().

Here is the caller graph for this function:

Variable Documentation

pLogSink

boost::shared_ptr< file_sink > pLogSink

Shared pointer to the logfile writer object.

Definition at line 418 of file USRP_server_diagnostic.cpp.

Referenced by Sync_server::clear_stream_queue(), and init_logger().
