Manages the hardware I/O of one usrp unit. More...

#include <USRP_hardware_manager.hpp>

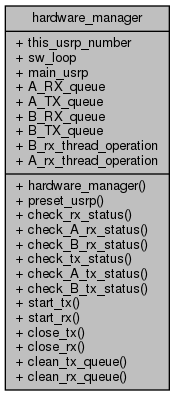

Collaboration diagram for hardware_manager:

Public Member Functions
	hardware_manager (server_settings *settings, bool sw_loop_init, size_t usrp_number=0)
	The initializer of the class can be used to select which usrp is controlled by the class Default call suppose only one USRP is connected. More...

bool	preset_usrp (usrp_param *requested_config)
	Set the USRP device with user parameters. More...

bool	check_rx_status (bool verbose=false)
	Check the status of every rx operations. Returns the status of A or B. More...

bool	check_A_rx_status (bool verbose=false)
	Check the status of A rx operations. More...

bool	check_B_rx_status (bool verbose=false)
	Check the status of B rx operations. More...

bool	check_tx_status (bool verbose=false)
	Check the status of every tx operations. Returns the status of A or B. More...

bool	check_A_tx_status (bool verbose=false)
	Check the status of A tx operations. More...

bool	check_B_tx_status (bool verbose=false)
	Check the status of B tx operations. More...

void	start_tx (threading_condition wait_condition, int thread_op, param current_settings, char front_end, preallocator< float2 > *memory=NULL)
	Start a transmission thread. The threads started by this function do two things: pop a packet from the respective queue; stram the packet via UHD interface. Each streamer is handled by an independent thread. If the source queue is empty a warning is printed on the console and an error is pushed in the erorr queue. More...

void	start_rx (int buffer_len, threading_condition wait_condition, preallocator< float2 > memory, int thread_op, param *current_settings, char front_end)
	@ brief start a rx thread. More...

void	close_tx ()
	Close all the tx streamer threads. More...

void	close_rx ()
	Close all the rx streamer threads. More...

int	clean_tx_queue (tx_queue TX_queue, preallocator< float2 > memory)
	Release the memory associated with pointers holded by a tx queue using the respective memory allocator. More...

int	clean_rx_queue (rx_queue RX_queue, preallocator< float2 > memory)
	Release the memory associated with pointers holded by a rx queue using the respective memory allocator. More...

Public Attributes
size_t	this_usrp_number

bool	sw_loop

uhd::usrp::multi_usrp::sptr	main_usrp

rx_queue *	A_RX_queue
	Queue accessed to retrive data from A frontend. More...

tx_queue *	A_TX_queue
	Queue accessed to stream data from A frontend. More...

rx_queue *	B_RX_queue
	Queue accessed to retrive data from B frontend. More...

tx_queue *	B_TX_queue
	Queue accessed to stream data from B frontend. More...

std::atomic< bool >	B_rx_thread_operation

std::atomic< bool >	A_rx_thread_operation

Detailed Description

Manages the hardware I/O of one usrp unit.

Definition at line 12 of file USRP_hardware_manager.hpp.

Constructor & Destructor Documentation

◆ hardware_manager()

hardware_manager::hardware_manager	(	server_settings *	settings,
		bool	sw_loop_init,
		size_t	usrp_number = `0`
	)

The initializer of the class can be used to select which usrp is controlled by the class Default call suppose only one USRP is connected.

Initializer of the class can be used to select which usrp is controlled by the class Default call suppose only one USRP is connected.

Todo:: TODO: the multi_usrp object has to be passed as argument to this initializer. Multiple usrp's will crash as the obj is not ts

Definition at line 8 of file USRP_hardware_manager.cpp.

References A_RX_queue, A_rx_thread_operation, A_TX_queue, B_RX_queue, B_rx_thread_operation, B_TX_queue, device_arguments, main_usrp, sw_loop, and this_usrp_number.

Member Function Documentation

◆ preset_usrp()

bool hardware_manager::preset_usrp ( usrp_param * requested_config )

Set the USRP device with user parameters.

This function set the USRP device with user parameters. It's really a wrappe raround the private methods apply(), set_streams() and check_tuning() of this class.

Todo:: TODO catch exceptions and return a boolean

Todo:: TODO catch exceptions and return a boolean

Definition at line 100 of file USRP_hardware_manager.cpp.

References sw_loop.

Referenced by TXRX::set().

Here is the caller graph for this function:

◆ check_rx_status()

bool hardware_manager::check_rx_status ( bool verbose = false )

Check the status of every rx operations. Returns the status of A or B.

Definition at line 133 of file USRP_hardware_manager.cpp.

References A_rx_thread_operation, B_rx_thread_operation, and print_debug().

Referenced by TXRX::stop().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_A_rx_status()

bool hardware_manager::check_A_rx_status ( bool verbose = false )

Check the status of A rx operations.

Definition at line 119 of file USRP_hardware_manager.cpp.

References A_rx_thread_operation, and print_debug().

Referenced by TXRX::start().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_B_rx_status()

bool hardware_manager::check_B_rx_status ( bool verbose = false )

Check the status of B rx operations.

Definition at line 126 of file USRP_hardware_manager.cpp.

References B_rx_thread_operation, and print_debug().

Referenced by TXRX::start().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_tx_status()

bool hardware_manager::check_tx_status ( bool verbose = false )

Check the status of every tx operations. Returns the status of A or B.

Definition at line 140 of file USRP_hardware_manager.cpp.

References print_debug().

Referenced by TXRX::stop().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_A_tx_status()

bool hardware_manager::check_A_tx_status ( bool verbose = false )

Check the status of A tx operations.

Definition at line 147 of file USRP_hardware_manager.cpp.

References print_debug().

Referenced by TXRX::start().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_B_tx_status()

bool hardware_manager::check_B_tx_status ( bool verbose = false )

Check the status of B tx operations.

Definition at line 154 of file USRP_hardware_manager.cpp.

References print_debug().

Referenced by TXRX::start().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ start_tx()

void hardware_manager::start_tx	(	threading_condition *	wait_condition,
		int	thread_op,
		param *	current_settings,
		char	front_end,
		preallocator< float2 > *	memory = `NULL`
	)

Start a transmission thread. The threads started by this function do two things: pop a packet from the respective queue; stram the packet via UHD interface. Each streamer is handled by an independent thread. If the source queue is empty a warning is printed on the console and an error is pushed in the erorr queue.

Definition at line 165 of file USRP_hardware_manager.cpp.

References A_TX_queue, B_TX_queue, print_error(), SetThreadName(), sw_loop, this_usrp_number, and Thread_Prioriry().

Referenced by TXRX::start().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ start_rx()

void hardware_manager::start_rx	(	int	buffer_len,
		threading_condition *	wait_condition,
		preallocator< float2 > *	memory,
		int	thread_op,
		param *	current_settings,
		char	front_end
	)

@ brief start a rx thread.

Start a receiver thread.

Definition at line 234 of file USRP_hardware_manager.cpp.

References A_RX_queue, A_rx_thread_operation, B_RX_queue, B_rx_thread_operation, print_error(), SetThreadName(), sw_loop, this_usrp_number, and Thread_Prioriry().

Referenced by TXRX::start().

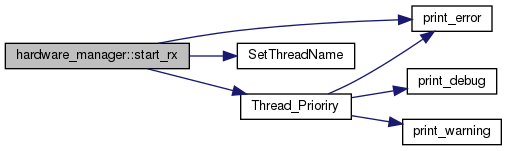

Here is the call graph for this function:

Here is the caller graph for this function:

◆ close_tx()

void hardware_manager::close_tx ( )

Close all the tx streamer threads.

Force close the tx uploading threads if active (thread safe)

Definition at line 299 of file USRP_hardware_manager.cpp.

Referenced by TXRX::stop().

Here is the caller graph for this function:

◆ close_rx()

void hardware_manager::close_rx ( )

Close all the rx streamer threads.

Force close the rx downloading threads if active (thread safe)

Definition at line 321 of file USRP_hardware_manager.cpp.

References A_rx_thread_operation, and B_rx_thread_operation.

Referenced by TXRX::stop().

Here is the caller graph for this function:

◆ clean_tx_queue()

int hardware_manager::clean_tx_queue	(	tx_queue *	TX_queue,
		preallocator< float2 > *	memory
	)

Release the memory associated with pointers holded by a tx queue using the respective memory allocator.

close a TX queue object preventing memory leaks. Before closing the queue (as the queue used supports multiple consumers) the frontend operation MUST be terminated.

Definition at line 343 of file USRP_hardware_manager.cpp.

References print_warning(), and preallocator< vector_type >::trash().

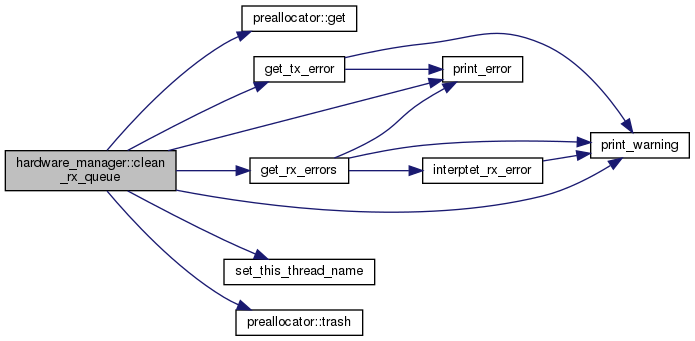

Here is the call graph for this function:

◆ clean_rx_queue()

int hardware_manager::clean_rx_queue	(	rx_queue *	RX_queue,
		preallocator< float2 > *	memory
	)

Release the memory associated with pointers holded by a rx queue using the respective memory allocator.

close a RX queue object preventing memory leaks. Before closing the queue (as the queue used supports multiple consumers) the frontend operation MUST be terminated.

Definition at line 368 of file USRP_hardware_manager.cpp.

References A_rx_thread_operation, B_rx_thread_operation, preallocator< vector_type >::get(), get_rx_errors(), get_tx_error(), main_usrp, print_error(), print_warning(), set_this_thread_name(), sw_loop, this_usrp_number, and preallocator< vector_type >::trash().
