H5_file_writer Class Reference

#include <USRP_file_writer.hpp>

Collaboration diagram for H5_file_writer:

Public Member Functions
	H5_file_writer (rx_queue *init_queue, preallocator< float2 > *init_memory)
	H5_file_writer (Sync_server *streaming_server)
void	start (usrp_param *global_params)
bool	stop (bool force=false)
void	close ()
void	update_pointers (rx_queue *init_queue, preallocator< float2 > *init_memory)
void	update_pointers (Sync_server *streaming_server)

Public Attributes
rx_queue *	stream_queue

Detailed Description

Definition at line 13 of file USRP_file_writer.hpp.

Constructor & Destructor Documentation

H5_file_writer() [1/2]

H5_file_writer::H5_file_writer	(	rx_queue *	init_queue,
		preallocator< float2 > *	init_memory
	)

Definition at line 7 of file USRP_file_writer.cpp.

H5_file_writer() [2/2]

H5_file_writer::H5_file_writer

(

Sync_server *

streaming_server

)

Definition at line 26 of file USRP_file_writer.cpp.

References Sync_server::memory, and Sync_server::out_queue.

Member Function Documentation

start()

void H5_file_writer::start

(

usrp_param *

global_params

)

Definition at line 42 of file USRP_file_writer.cpp.

References print_error().

Referenced by TXRX::start().

Here is the call graph for this function:

Here is the caller graph for this function:

stop()

bool H5_file_writer::stop

(

bool

force = false

)

Definition at line 99 of file USRP_file_writer.cpp.

Referenced by TXRX::stop().

Here is the caller graph for this function:

close()

void H5_file_writer::close

(

)

Definition at line 115 of file USRP_file_writer.cpp.

update_pointers() [1/2]

void H5_file_writer::update_pointers	(	rx_queue *	init_queue,
		preallocator< float2 > *	init_memory
	)

Definition at line 123 of file USRP_file_writer.cpp.

Referenced by TXRX::set().

Here is the caller graph for this function:

update_pointers() [2/2]

void H5_file_writer::update_pointers

(

Sync_server *

streaming_server

)

Definition at line 127 of file USRP_file_writer.cpp.

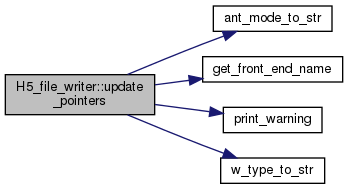

References ant_mode_to_str(), get_front_end_name(), Sync_server::memory, Sync_server::out_queue, print_warning(), and w_type_to_str().

Here is the call graph for this function:

Member Data Documentation

stream_queue

rx_queue* H5_file_writer::stream_queue

Definition at line 16 of file USRP_file_writer.hpp.

---

The documentation for this class was generated from the following files:

• headers/USRP_file_writer.hpp
• cpp/USRP_file_writer.cpp
