Tophat, with Mirrors

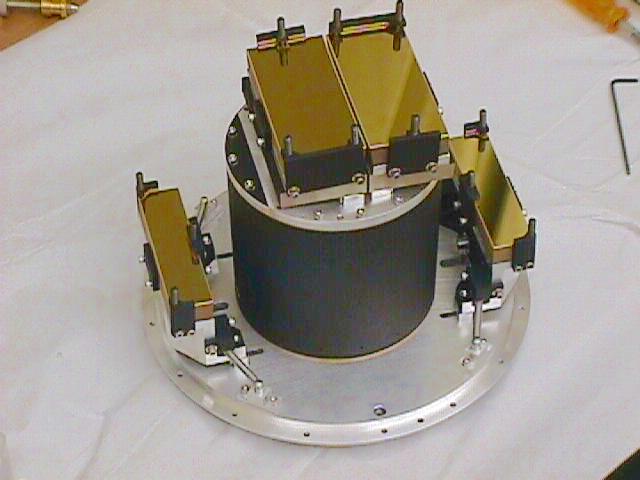

The tophat, with mirrors in place. The two narrow mirrors are the spherical collimator mirrors, and the two mirrors on top of the hat are the camera mirrors, which reformat the light to match the f/70 input of the infrared camera. It is ready for insertion into the lower shield.
