August 22, 1998 at 01:51

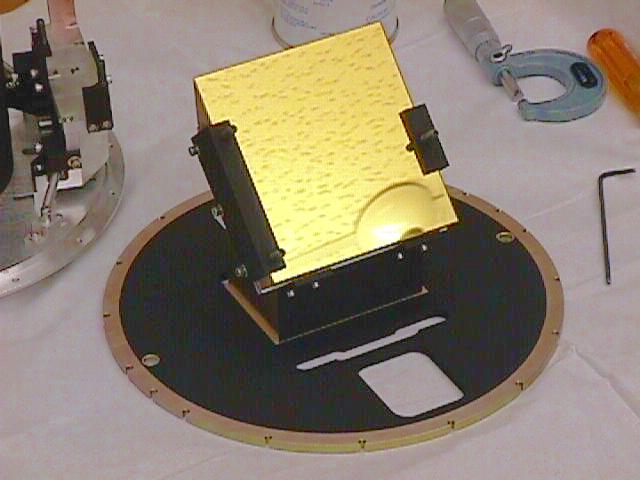

Camera Fold Mirror

Here the camera fold mirror has been placed into its mount, and is now ready to be inserted into the lower shield. This is the mirror that sends the reformatted focal plane out of the dewar to the camera. The crinkly surface is actually a reflection of the ceiling tile. Note the collimator mirror mount to the left.
