August 22, 1998 at 22:48

Flip Mirrors, Installed

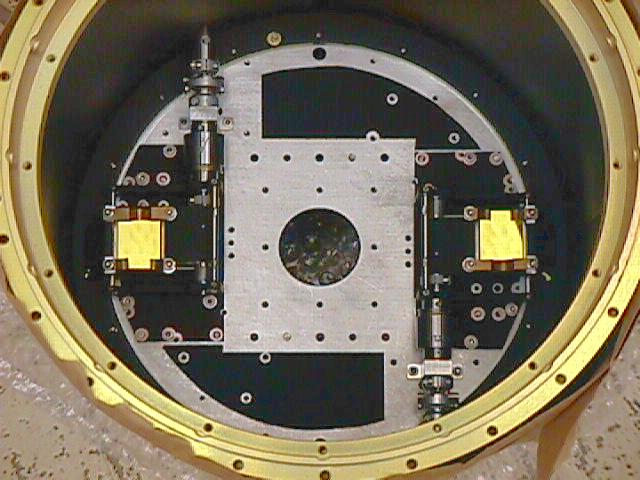

Here the flip mirrors are in place in the dewar can. You can see the gold mirror surfaces and the shafts that come in from the sides to flip the mirrors in and out of the light path. The central unpainted rectangle is where the image slicer attaches.
