LIGHTING

CONTROL

An ETC ION (with 2x20 Fader Wing) is located in the Booth at the rear of the Auditorium. This controls 96 ETC 2.4k Sensor Dimmers. Dimmer Per Circuit.

Curtain and screen controls are located both in the booth and at the stage manager's console backstage.

Auditorium house lights can be controlled from both the lighting console and the stage manager's console.

CIRCUITS

Stage lighting circuits are 20-amp, 115 volt.

Stage connectors are twist-lock. Adaptors are available for converting from twist lock to stage pin or edison connectors.

LIGHTING POSITIONS

In addition to the two front-of-house positions (see diagram below), there are eight pipes on stage which can be used for lighting. (see cross section)

Two hanging light ladders are available for side lighting. Six instruments can be hung on each ladder unit.

There are no box boom positions.

Catwalks provide easy access to the two front-of-house positions.

A portable Tallescope ladder is available for hanging and focusing instruments on stage

COLOR

An ample supply of all Roscolene and Roscolux colors is stocked.

STANDARD HOUSE PLOT

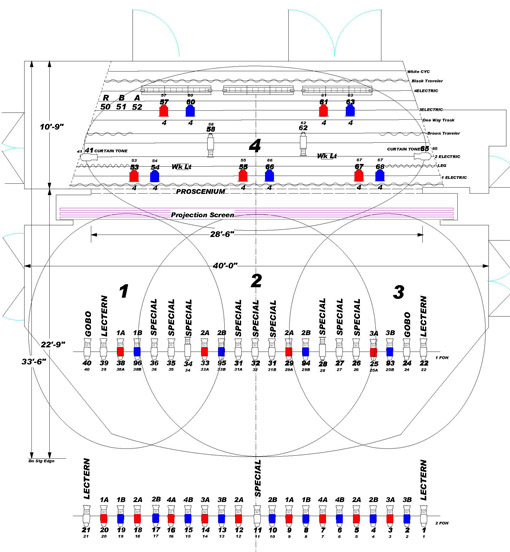

Ramo House Plot

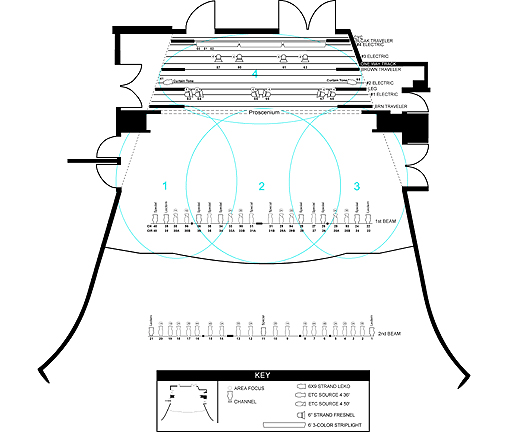

Ramo Light Plot in 1/4 scale. Prints on 11X17 paper

LIGHTING
INSTRUMENTS

TYPEWATTAGEQUANTITYPOSITION
40 ETC SOURCE 475022Moveable
50 ETC SOURCE 47508Moveable
6" STRAND FRESNEL100010Moveable
3-COLOR CENTURY STRIP1506Moveable

INSTTYPEWATTAGEFOCUS

SECOND BEAM
140º ETC SOURCE 4 750LECTERN
240 ETC SOURCE 4750AREA 3B FRONT
340 ETC SOURCE 4750AREA 3A FRONT
440 ETC SOURCE 4750AREA 2B FRONT
540 ETC SOURCE 4750AREA 2A FRONT
640 ETC SOURCE 4750AREA 4B FRONT
740 ETC SOURCE 4750AREA 4A FRONT
840 ETC SOURCE 4750AREA 1B FRONT
940 ETC SOURCE 4750AREA 1A FRONT
1040 ETC SOURCE 4750AREA 2B FRONT
1140º ETC SOURCE 4 750SPECIAL
12 40 ETC SOURCE 4750AREA 2A FRONT
1340 ETC SOURCE 4750AREA 3B FRONT
1440 ETC SOURCE 4750AREA 3A FRONT
1540 ETC SOURCE 4750AREA 4B FRONT
1640 ETC SOURCE 4750AREA 4A FRONT
1740 ETC SOURCE 4750AREA 2B FRONT
1840 ETC SOURCE 4750AREA 2A FRONT
1940 ETC SOURCE 4750AREA 1B FRONT
2040 ETC SOURCE 4750AREA 1A FRONT
2140º ETC SOURCE 4 750LECTERN

FIRST BEAM
2240º ETC SOURCE 4 750LECTERN
2440º ETC SOURCE 4 750SPECIAL
25B50 ETC SOURCE 4750AREA 3B DOWN
25A50 ETC SOURCE 4750AREA 3A DOWN
2640º ETC SOURCE 4 750SPECIAL
2750 ETC SOURCE 4750SPECIAL
2840º ETC SOURCE 4 750SPECIAL
29B50 ETC SOURCE 4750AREA 2B DOWN
29A50 ETC SOURCE 4750AREA 2A DOWN
31B50 ETC SOURCE 4750SPECIAL
31A50 ETC SOURCE 4750SPECIAL
33B50 ETC SOURCE 4750AREA 2B DOWN
33A50 ETC SOURCE 4750AREA 2A DOWN
3440º ETC SOURCE 4 750SPECIAL
3550 ETC SOURCE 4750SPECIAL
3640º ETC SOURCE 4 750SPECIAL
38B50 ETC SOURCE 4750AREA 1B DOWN
38A50 ETC SOURCE 4750AREA 1A DOWN
3940º ETC SOURCE 4 750LECTERN
4040º ETC SOURCE 4 750SPECIAL

FIRST ELECTRIC
536" STRAND FRESNEL1000AREA 6 DOWN
546" STRAND FRESNEL1000AREA 7 DOWN
556" STRAND FRESNEL1000AREA 8 DOWN
666" STRAND FRESNEL1000AREA 6 DOWN
676" STRAND FRESNEL1000AREA 7 DOWN
686" STRAND FRESNEL1000AREA 8 DOWN

SECOND ELECTRIC
416X9 STRAND LEKO750CURTAIN TONING
656X9 STRAND LEKO750CURTAIN TONING

THIRD ELECTRIC
576" FRES1000SR BACKLIGHT
606" FRES1000SC BACKLIGHT
616" FRES1000SC BACKLIGHT
636" FRES1000SL BACKLIGHT

FOURTH ELECTRIC
503-COLOR CENTURY STRIP150CYC
513-COLOR CENTURY STRIP150CYC
523-COLOR CENTURY STRIP150CYC
